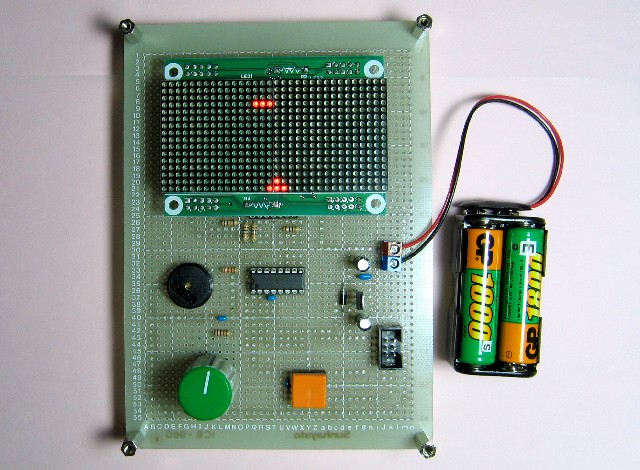

ポータブル・ゲーム・システム

/** ###################################################################
**     Filename  : LedMat.C
**     Project   : LedMat
**     Processor : MC9S08QG8CPB
**     Compiler  : CodeWarrior HCS08 C Compiler
** ###################################################################*/
/* MODULE LedMat */


/* Including used modules for compiling procedure */
#include "Cpu.h"
#include "Events.h"
#include "SM1.h"
#include "Strobe.h"
#include "Latch.h"
#include "TI1.h"
#include "Pot.h"
#include "Shoot.h"
#include "Tpm.h"
/* Include shared modules, which are used for whole project */
#include "PE_Types.h"
#include "PE_Error.h"
#include "PE_Const.h"
#include "IO_Map.h"

#pragma DATA_SECTION SHORT MY_ZEROPAGE
//================================================================
//  Multiple purpose flag register.
//    All boolean varibales are combined into a structure and
//    assigned to a SHORT addressing segment to reduce RAM
//    area and codes.
//
//    target_exhausted :
//      indicates if all TARGET objects are gone.
//    action_requested :
//      indicates an ACTION is expected by periodic timer event.
//    music_played :
//      indicates a MUSIC is played.
//    hit :
//      indicates a bullet reached to the ceil.
//================================================================
struct Flag {
  bool target_exhausted:1;
  bool action_requested:1;
  bool music_played:1;
  bool hit:1;
} flag;

#pragma DATA_SECTION DEFAULT

//================================================================
//  State machine management.
//================================================================
#pragma DATA_SECTION SHORT MY_ZEROPAGE
//----------------------------------------------------------------
//  Global variables for State-Machine.
//
//    action :
//      STATE object for game sequence state-machine.
//----------------------------------------------------------------
void        (*action)(void);

#pragma DATA_SECTION DEFAULT

//================================================================
//  Random Number Generator
//================================================================
#pragma DATA_SECTION SHORT MY_ZEROPAGE
//----------------------------------------------------------------
//  Global variables for Random number generator.
//
//    n_rand :
//      Random number register is implemented as a 16-bit
//      counter.
//----------------------------------------------------------------
word        n_rand;

#pragma DATA_SECTION DEFAULT

//================================================================
//  Sono object management.
//================================================================
//----------------------------------------------------------------
// Structure Sono describing a piece of sound.
//----------------------------------------------------------------
typedef struct {
  byte      count;    // Length of Sono
  word      period;   // Period parameter for PWM.
} Sono;

#pragma DATA_SECTION SHORT MY_ZEROPAGE
//--------------------------------------------------------
//  Global variables for SONO object manager.
//
//    Following variables are used by the SONO manager
//    and never used by user program immediately.
//    User programs should use METHODs, like sono_queue()
//    and sono_disable().
//
//    sono_count :
//      Number of ticks left for current SONO.
//          0 - No SONO executed.
//        255 - Current SONO has infinite length.
//    sono_queue :
//      Sono in the QUEUE.
//--------------------------------------------------------
byte          sono_count;
Sono          sono_queue;

#pragma DATA_SECTION DEFAULT

//----------------------------------------------------------------
//  sono_dispatch :
//    Dispatch a Sono object management.  This function is
//    typically invoked by the periodical timer event handler.
//----------------------------------------------------------------
void sono_dispatch(void) {
  // Update PWM period if requested.
  if ((sono_count == 0) || (sono_count == 255)) {
    // If currently played Sono completed,
    // check queue status.
    if (sono_queue.count > 0) {
      // Accept queue if exists.
      TPMMOD = sono_queue.period - 1;   // Set period
      TPMC0V = sono_queue.period / 2;   // Set duty to 50%
      sono_count = sono_queue.count;    // Set SONO timer
      sono_queue.count = 0;             // Reset the queue
    } else {
      // Stop SONO
      TPMC0V = TPMMOD;                // Set duty to 0%
    }
  }
  // ignore infinite length
  if (sono_count == 255) return;
  // Stop SONO at last tick if a MUSIC played.
  if (flag.music_played && sono_count == 1) {
    // Stop SONO
    TPMC0V = TPMMOD;                  // Set duty to 0%
  }
  // Decrement SONO timer
  sono_count--;
}

//----------------------------------------------------------------
//  sono_queue_in :
//    Queue in line a Sono object.
//
//    Parameter:
//      sono :
//        Pointer to a SONO object to be queued in.
//    Returns:
//        TRUE if the SONO object is accepted to QUEUE.
//        FaLSE if the QUEUE buffer is full.
//----------------------------------------------------------------
bool sono_queue_in(const Sono *sono){
  bool      result;

  // No interrupt allowed to protect QUEUE buffer.
  Cpu_DisableInt();
  if (sono_queue.count == 0) {
    // Add into queue if queue is empty.
    sono_queue = *sono;
    result = TRUE;
  } else {
    // Queue is full.
    result = FALSE;
  }
  Cpu_EnableInt();
  return result;
}

//----------------------------------------------------------------
//  sono_disable :
//    Disable SONO currently played and discard SONO in queue.
//----------------------------------------------------------------
void sono_disable(void) {
  // No interrupt allowed to protect QUEUE buffer.
  Cpu_DisableInt();
  TPMC0V = TPMMOD;          // Set duty to 0% to stop SONO
  sono_count = 0;           // Discard currently played SONO
  sono_queue.count = 0;     // Discard SONO in QUEUE.
  Cpu_EnableInt();
}

//================================================================
//  MUSIC object management.
//================================================================
#pragma DATA_SECTION SHORT MY_ZEROPAGE
//----------------------------------------------------------------
//  Variables for MUSIC object manager.
//    A MUSIC is described as a list of Sono.
//
//    music_score :
//      Pointer to a MUSIC currently played.
//    music_index :
//      Index counter to indicating a Sono.
//----------------------------------------------------------------
const Sono *    music_score;
byte            music_index;

#pragma DATA_SECTION DEFAULT

//----------------------------------------------------------------
//  music_init :
//    Initialize the MUSIC dispatcher.
//
//    Parameter:
//      score :
//        Pointer to a MUSIC score to be played.
//----------------------------------------------------------------
void music_init(const Sono *score) {
  // Initialize global variables.
  music_score = score;
  music_index = 0;
  // Set music_played flag to make a MUSIC oriented SONO.
  flag.music_played = TRUE;
}

//----------------------------------------------------------------
//  music_dispatch :
//    Dispatch function to play a MUSIC score.
//    This function is onvoked by the ACTION states periodically.
//----------------------------------------------------------------
void music_dispatch(void) {
  if (music_score) {
    // Play MUSIC if a music_score specified.
    // Queue a SONO in score.
    if (sono_queue_in(&music_score[music_index])) {
      // Increment index if the SONO was accepted.
      music_index++;
      // Rewind the MUSIC index if a STOP code detected.
      if (music_score[music_index].count == 0) {
        music_index = 0;
      }
    }
  }
}

//================================================================
//  MUSIC Score
//    MUSIC scores are described as an array of SONO object.
//================================================================
//----------------------------------------------------------------
//  Period parameter for music score.
//----------------------------------------------------------------
const word  P_3Fis = 8000000 /  740;
const word  P_3Gis = 8000000 /  831;
const word  P_3A   = 8000000 /  880;
const word  P_3H   = 8000000 /  988;
const word  P_4Cis = 8000000 / 1109;
const word  P_4D   = 8000000 / 1175;
const word  P_4E   = 8000000 / 1319;
const word  P_4Fis = 8000000 / 1480;
const word  P_4Gis = 8000000 / 1661;
const word  P_4A   = 8000000 / 1760;


//----------------------------------------------------------------
//  Piano Sonate K331, Mozart
//----------------------------------------------------------------
const Sono sonate[] = {
   24, P_4Cis, // DO#
    8, P_4D,   // RE
   16, P_4Cis, // DO#
   32, P_4E,   // MI
   16, P_4E,   // MI
   24, P_3H,   // SI
    8, P_4Cis, // DO#
   16, P_3H,   // SI
   32, P_4D,   // RE
   16, P_4D,   // RE
   32, P_3A,   // RA
   16, P_3A,   // RA
   32, P_3H,   // SI
   16, P_3H,   // SI
   32, P_4Cis, // DO#
    8, P_4E,   // MI
    8, P_4D,   // RE
   32, P_4Cis, // DO#
   16, P_3H,   // SI

   24, P_4Cis, // DO#
    8, P_4D,   // RE
   16, P_4Cis, // DO#
   32, P_4E,   // MI
   16, P_4E,   // MI
   24, P_3H,   // SI
    8, P_4Cis, // DO#
   16, P_3H,   // SI
   32, P_4D,   // RE
   16, P_4D,   // RE
   32, P_3A,   // RA
   16, P_3H,   // SI
   32, P_4Cis, // DO#
   16, P_4D,   // RE
   32, P_4Cis, // DO#
   16, P_3H,   // SI
   32, P_3A,   // RA
   16,    0,   // -

   24, P_4E,   // MI
    8, P_4Fis, // FA#
   16, P_4E,   // MI
   32, P_4Fis, // FA#
   16, P_4Fis, // FA#
    4, P_4Fis, // FA#
    4, P_4Gis, // SO#
   16, P_4A,   // RA
    8, P_4Gis, // SO#
   16, P_4Fis, // FA#
   16, P_4Fis, // FA#
   16, P_4E,   // MI
   16, P_4E,   // MI
   16, P_4E,   // MI
   16, P_4Cis, // DO#
   16, P_3A,   // RA
   16, P_4E,   // MI
   16, P_4D,   // RE
   16, P_3H,   // SI
   16, P_4E,   // MI
   16, P_4Cis, // DO#
   16, P_3A,   // RA
   32, P_4Cis, // DO#
   16, P_3H,   // SI

   24, P_4Cis, // DO#
    8, P_4D,   // RE
   16, P_4Cis, // DO#
   32, P_4E,   // MI
   16, P_4E,   // MI
   24, P_3H,   // SI
    8, P_4Cis, // DO#
   16, P_3H,   // SI
   32, P_4D,   // RE
   16, P_4D,   // RE
   32, P_3A,   // RA
   16, P_3H,   // SI
   32, P_4Cis, // DO#
   16, P_4D,   // RE
   32, P_4Cis, // DO#
   16, P_3H,   // SI
   32, P_3H,   // SI
   16, P_4Cis, // DO#

   32, P_4Cis, // DO#
   16, P_4D,   // RE
   32, P_4E,   // MI
    8, P_4Fis, // FA#
    4, P_4Gis, // SO#
    4, P_4A,   // RA
   32, P_3A,   // RA
    8, P_4Cis, // DO#
    8, P_3H,   // SI
   32, P_3A,   // RA
   16, 0,      // -

    0,    0    // STOP
};


//----------------------------------------------------------------
//  Dash!!  noritan.org
//----------------------------------------------------------------
const Sono dash[] = {
    8, P_3Fis, // FA#
    8, P_3Fis, // FA#
    8, P_3A,   // RA
    8, P_3A,   // RA
    8, P_3Fis, // FA#
    8, P_3Fis, // FA#
    8, P_3A,   // RA
    8, P_3A,   // RA
    8, P_3Fis, // FA#
    8, P_3Fis, // FA#
    8, P_3A,   // RA
   16, P_4D,   // RE
    8, P_4Cis, // DO#
    8, P_3H  , // SI
    8, P_3A,   // RA

    8, P_3Fis, // FA#
    8, P_3Fis, // FA#
    8, P_3A,   // RA
    8, P_3A,   // RA
    8, P_3Fis, // FA#
    8, P_3Fis, // FA#
    8, P_3A,   // RA
    8, P_3A,   // RA
    8, P_3Fis, // FA#
    8, P_3Fis, // FA#
    8, P_3A,   // RA
   16, P_4D,   // RE
    8, P_4Cis, // DO#
    8, P_3H  , // SI
    8, P_4Cis, // DO#

    8, P_3H  , // SI
    8, P_3H  , // SI
    8, P_4D,   // RE
    8, P_4D,   // RE
    8, P_3H  , // SI
    8, P_3H  , // SI
    8, P_4D,   // RE
    8, P_4D,   // RE
    8, P_3H  , // SI
    8, P_3H  , // SI
    8, P_4D,   // RE
   16, P_4Fis, // FA#
    8, P_4E  , // MI
    8, P_4D,   // RE
    8, P_4Cis, // DO#

    8, P_4Cis, // DO#
    8, P_4Cis, // DO#
    8, P_3H  , // SI
    8, P_3H  , // SI
    8, P_4Cis, // DO#
    8, P_4Cis, // DO#
    8, P_3H  , // SI
    8, P_3H  , // SI
    8, P_4D,   // RE
    8, P_4Cis, // DO#
    8, P_3H  , // SI
   16, P_4D,   // RE
    8, P_4Cis, // DO#
    8, P_3H  , // SI
    8, P_3A,   // RA

    0,    0    // STOP
};

//================================================================
//  SPI communication manager.
//================================================================
#pragma DATA_SECTION SHORT MY_ZEROPAGE
//----------------------------------------------------------------
//  Global variables for SPI communication.
//
//    These variables are not directly controlled by user
//    programs because all SPI requests are invoked by
//    METHODs.
//
//    spi_size :
//      Number of data bytes sent by SPI module.  This value
//      indicates how many bytes should be received by SPI
//      module too.
//    spi_callback :
//      A callback function executed when an expected size
//      of data received by SPI module.
//----------------------------------------------------------------
word          spi_size;
void          (*spi_callback)(bool);

#pragma DATA_SECTION DEFAULT

//----------------------------------------------------------------
//  spi_start :
//    Method to start a SPI transfer.
//
//    Parameter:
//      tx_data :
//        Pointer to data to be sent by SPI module.
//      size :
//        The number of bytes to be sent by SPI module.
//      callback :
//        A callback function to be invoked when a transfer
//        completed or failed.
//----------------------------------------------------------------
void spi_start(
    byte *      tx_data,
    byte        size,
    void        (*callback)(bool)
) {
  byte          err_code;
  word          n_sent;

  // Flush TX/RX buffers.
  (void)SM1_ClearRxBuf();
  (void)SM1_ClearTxBuf();

  // Register the size of data and the callback function.
  spi_size = size;
  spi_callback = callback;

  // Start a SPI communication to send a data block
  err_code = SM1_SendBlock(tx_data, size, &n_sent);

  // Confirm error code
  if (err_code == ERR_OK) {
    // Block accepted successfully.
    if (n_sent != size) {
      // Size mismatch - abort transfer.
      (void)SM1_ClearTxBuf();
    }
  } else {
    // Error reported - abort transfer.
    (void)SM1_ClearTxBuf();
  }
}

//----------------------------------------------------------------
//  spi_OnRxChar :
//
//    An interrupt handler invoked when a byte of data
//    received by SPI module.  A callback function specified
//    by user programs is executed with an argument FALSE
//    to indicate successful transfer when expected size
//    of data are received.
//----------------------------------------------------------------
void spi_OnRxChar(void) {
  if (SM1_GetCharsInRxBuf() >= spi_size) {
    // Received data is larger than expected.
    (*spi_callback)(FALSE);
  }
}

//----------------------------------------------------------------
//  spi_OnError :
//
//    An interrupt handler invoked when error were detected
//    by SPI module.  A callback function specified by user
//    programs is executed with an argument TRUE to indicate
//    illegal transfer.
//----------------------------------------------------------------
void spi_OnError(void) {
  (*spi_callback)(TRUE);
}

//================================================================
//  LED Display controller
//================================================================
#pragma DATA_SECTION SHORT MY_ZEROPAGE
//----------------------------------------------------------------
//  Global variables for LED display.
//
//    fb :
//      Frame buffer of LED display.  64 bytes of memory array
//      describes the state of 512 LEDs.
//    led_tx :
//      A packet to be sent to matrix LED display by SPI module.
//----------------------------------------------------------------
byte            fb[64];
byte            led_tx[6];

#pragma DATA_SECTION DEFAULT

//----------------------------------------------------------------
//  Table array for LED display.
//    These tables are assigned as CONST and placed on ROM.
//
//    bit_pattern[] :
//      Look-up table to calculate (1 << (7-n))
//    bit_pattern_r[] :
//      Look-up table to calculate (1 << (n))
//----------------------------------------------------------------
const byte bit_pattern[] = {
  0x80, 0x40, 0x20, 0x10, 0x08, 0x04, 0x02, 0x01
};
const byte bit_pattern_r[] = {
  0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40, 0x80
};

//----------------------------------------------------------------
//  led_display :
//    Method to invoke a SPI transfer driving a ROW.
//
//    Parameter:
//      row :
//        The ROW number to be driven.  No LEDs driven when
//        row is larger than or equal to 16.
//----------------------------------------------------------------
void led_display(byte row) {
  // Callback function for LED packet transfer.
  void          led_display_cb(bool);
  // Index base for the ROW in fb array.
  byte          index = row * 4;

  if (row < 16) {
    // Copy a row in fb array into led_tx buffer.
    led_tx[0] = fb[index + 3];
    led_tx[1] = fb[index + 2];
    led_tx[2] = fb[index + 1];
    led_tx[3] = fb[index + 0];
    // Select a row.
    if (row < 8) {
      // Upper half case.
      led_tx[4] = bit_pattern_r[row];
      led_tx[5] = 0;
    } else {
      // Lower half case.
      led_tx[4] = 0;
      led_tx[5] = bit_pattern_r[row - 8];
    }
  } else {
    // Blanking period - no ROW selected.
    led_tx[4] = 0;
    led_tx[5] = 0;
  }
  // Send a SPI transfer.
  spi_start(led_tx, 6, led_display_cb);
}

//----------------------------------------------------------------
//  led_display_cb :
//    Callback function when a transfer for LED display
//    completed.
//
//    Parameter:
//      error :
//        TRUE if the SPI transfer was failed and FALSE if the
//        SPI transfer is successfully completed.
//----------------------------------------------------------------
void led_display_cb(bool error) {
  if (!error) {
    // Drop unnecessary received data.
    (void)SM1_ClearRxBuf();
    // Toggle LATCH signal to drive LEDs.
    Latch_SetVal();
    Latch_ClrVal();
    // Set STROBE signal to enable LED drivers.
    Strobe_SetVal();
  } else {
    // Drop characters in buffer.
    (void)SM1_ClearRxBuf();
  }
}

//----------------------------------------------------------------
//  pset :
//    Low-level function to set a pixel on frame buffer.
//
//    Parameter:
//      x, y :
//        Position of a pixel to be set.
//----------------------------------------------------------------
void pset(byte x, byte y) {
  fb[((y & 15) << 2) + ((x & 31) >> 3)] |= bit_pattern[x & 7];
}

//----------------------------------------------------------------
//  pclr :
//    Low-level function to clear a pixel on frame buffer.
//
//    Parameter:
//      x, y :
//        Position of a pixel to be cleared.
//----------------------------------------------------------------
void pclr(byte x, byte y) {
  fb[((y & 15) << 2) + ((x & 31) >> 3)] &= ~bit_pattern[x & 7];
}

//----------------------------------------------------------------
//  fb_clear :
//    Clear specified ROWs.
//
//    Parameter:
//      row_start :
//        The upper-most ROW to be cleared.
//      row_count :
//        The number of ROWs to be cleared.
//----------------------------------------------------------------
void fb_clear(
  const byte    row_start,
  const byte    row_count
) {
  // Index base for the ROW in fb array.
  byte    index = row_start * 4;
  byte    i;

  for (i = 0; i < row_count; i++) {
    fb[index++] = 0;
    fb[index++] = 0;
    fb[index++] = 0;
    fb[index++] = 0;
  }
}

//----------------------------------------------------------------
//  fb_shiftLeft :
//    Shift left specified row in the frame buffer.
//
//    Parameter:
//      row_start :
//        The upper-most ROW to be shifted.
//      row_count :
//        The number of ROWs to be shifted.
//----------------------------------------------------------------
void fb_shiftLeft(
  const byte    row_start,
  const byte    row_count
) {
  // Index base for the ROW in fb array.
  byte    index = row_start * 4;
  byte    row;
  byte    data;

  for (row = 0; row < row_count; row++) {
    /*
    __asm {
      clrh
      ldx index
      asl @fb+0,X
      rol @fb+1,X
      rol @fb+2,X
      rol @fb+3,X
    }
    */
    data = fb[index + 0] << 1;
    if (fb[index + 1] & 128) {
      data++;
    }
    fb[index + 0] = data;
    data = fb[index + 1] << 1;
    if (fb[index + 2] & 128) {
      data++;
    }
    fb[index + 1] = data;
    data = fb[index + 2] << 1;
    if (fb[index + 3] & 128) {
      data++;
    }
    fb[index + 2] = data;
    fb[index + 3] <<= 1;
    index += 4;
  }
}

//================================================================
//  MESSAGE object management.
//================================================================
#pragma DATA_SECTION SHORT MY_ZEROPAGE
//----------------------------------------------------------------
//  Global variables for message manager.
//    These variables are used by both 11 and 7 points fonts.
//
//    message_table :
//      Pointer to a MESSAGE currently displayed.
//    message_index :
//      Index indicating a character in a message.
//    message_char :
//      Index indicating a character in a font list.
//    message_column :
//      Index indicating a pixel column in a font.
//----------------------------------------------------------------
const byte *    message_table;
byte            message_index;
byte            message_char;
byte            message_column;

#pragma DATA_SECTION DEFAULT


//----------------------------------------------------------------
//  message_init :
//    Initialize the MESSAGE dispatcher to start a message
//    stream.
//
//    Parameter:
//      message :
//        Pointer to a MESSAGE.
//----------------------------------------------------------------
void message_init(const byte *message) {
  message_table = message;
  message_index = 0;
  message_column = 0;
}

//----------------------------------------------------------------
//  fonts11[][] :
//    10cols X 11rows font data table.
//    A character consists of 10 WORD data.  The first WORD
//    of a character describes the left side pixel.  The LSB
//    of the WORD describes the lower pixel.
//----------------------------------------------------------------
const word fonts11[][10] = {
0x3fe, 0x7ff, 0x7ff, 0x401, 0x401, 0x401, 0x401, 0x7ff, 0x7ff, 0x3fe, // 0
0x001, 0x401, 0x401, 0x7ff, 0x7ff, 0x7ff, 0x7ff, 0x001, 0x001, 0x001, // 1
0x39f, 0x79f, 0x79f, 0x411, 0x411, 0x411, 0x411, 0x7f1, 0x7f1, 0x3e1, // 2
0x39e, 0x79f, 0x79f, 0x421, 0x421, 0x421, 0x421, 0x7ff, 0x7ff, 0x3de, // 3
0x0fc, 0x1fc, 0x3fc, 0x604, 0x404, 0x7ff, 0x7ff, 0x7ff, 0x004, 0x004, // 4
0x7ce, 0x7cf, 0x7cf, 0x441, 0x441, 0x441, 0x441, 0x47f, 0x47f, 0x43e, // 5
0x3fe, 0x7ff, 0x7ff, 0x421, 0x421, 0x421, 0x421, 0x7bf, 0x7bf, 0x39e, // 6
0x700, 0x700, 0x700, 0x400, 0x41f, 0x43f, 0x47f, 0x7e0, 0x7c0, 0x780, // 7
0x3de, 0x7ff, 0x7ff, 0x421, 0x421, 0x421, 0x421, 0x7ff, 0x7ff, 0x3de, // 8
0x3ce, 0x7ef, 0x7ef, 0x421, 0x421, 0x421, 0x421, 0x7ff, 0x7ff, 0x3fe, // 9
0x0ff, 0x3ff, 0x3ff, 0x710, 0x410, 0x410, 0x710, 0x3ff, 0x3ff, 0x0ff, // A
0x401, 0x7ff, 0x7ff, 0x7ff, 0x401, 0x401, 0x401, 0x7ff, 0x3fe, 0x1fc, // D
0x401, 0x7ff, 0x7ff, 0x7ff, 0x421, 0x421, 0x471, 0x471, 0x603, 0x603, // E
0x7ff, 0x7ff, 0x7ff, 0x020, 0x020, 0x020, 0x020, 0x7ff, 0x7ff, 0x7ff, // H
0x000, 0x000, 0x401, 0x7ff, 0x7ff, 0x7ff, 0x7ff, 0x401, 0x000, 0x000, // I
0x7ff, 0x7ff, 0x3ff, 0x180, 0x0c0, 0x0c0, 0x180, 0x3ff, 0x7ff, 0x7ff, // M
0x7ff, 0x7ff, 0x7ff, 0x420, 0x430, 0x438, 0x43c, 0x7ef, 0x7c7, 0x383, // R
0x3ce, 0x7ef, 0x7ef, 0x421, 0x421, 0x421, 0x421, 0x7bf, 0x7bf, 0x39e, // S
0x600, 0x400, 0x400, 0x7ff, 0x7ff, 0x7ff, 0x7ff, 0x400, 0x400, 0x600, // T
0x000, 0x000, 0x000, 0x000, 0x000, 0x000, 0x000, 0x000, 0x000, 0x000  // blank
};

//----------------------------------------------------------------
//  message_11_dispatch :
//    Dispatch function to draw a column of a character
//    representing by fonts11[] table.
//
//    Parameter:
//      row_start :
//        The upper-most ROW number to draw a character.
//----------------------------------------------------------------
void message_11_dispatch(const byte row_start) {
  word        msg_data;
  word        mask;
  byte        row;

  // Select a character to be drawn.
  if (message_column == 0) {
    // Load a new character if left-most pixel selected.
    if (message_table[message_index] == 255) {
      // Rewind index value to ZERO.
      message_index = 0;
    }
    // Get a character from message.
    message_char = message_table[message_index++];
  }
  // Prepare a column data to be drawn in msg_data.
  if (message_column < 10) {
    msg_data = fonts11[message_char][message_column];
  } else {
    // Set blank pixel as gap between characters.
    msg_data = 0;
  }
  // Draw a pixel pattern.
  // Set a pixel if set in character font.
  mask = 1 << (11 - 1);
  for (row = 0; row < 11; row++) {
    if (msg_data & mask) {
      pset(31, row + row_start);
    }
    mask >>= 1;
  }
  // Revert pixel column index to left-most.
  if (++message_column >= 12) {
    message_column = 0;
  }
}

//----------------------------------------------------------------
//  fonts7[][] :
//    7cols X 7rows font data table.
//    A character consists of 7 BYTE data.  The first BYTE
//    of a character describes the left side pixel.  The LSB
//    of the BYTE describes the lower pixel.
//----------------------------------------------------------------
const byte fonts7[][7] = {
0x3e, 0x7f, 0x41, 0x41, 0x41, 0x7f, 0x3e, // 0
0x00, 0x00, 0x21, 0x7f, 0x7f, 0x01, 0x00, // 1
0x23, 0x67, 0x4d, 0x49, 0x49, 0x79, 0x31, // 2
0x22, 0x63, 0x49, 0x49, 0x49, 0x7f, 0x36, // 3
0x1e, 0x3e, 0x62, 0x42, 0x7f, 0x7f, 0x02, // 4
0x7a, 0x7b, 0x49, 0x49, 0x49, 0x4f, 0x06, // 5
0x3e, 0x7f, 0x49, 0x49, 0x49, 0x6f, 0x26, // 6
0x60, 0x60, 0x40, 0x47, 0x4f, 0x78, 0x70, // 7
0x36, 0x7f, 0x49, 0x49, 0x49, 0x7f, 0x36, // 8
0x32, 0x7b, 0x49, 0x49, 0x49, 0x7f, 0x3e, // 9
0x7f, 0x3f, 0x10, 0x08, 0x10, 0x3f, 0x7f, // M
0x00, 0x00, 0x41, 0x7f, 0x7f, 0x41, 0x00, // I
0x32, 0x7b, 0x49, 0x49, 0x49, 0x6f, 0x26, // S
0x7f, 0x7f, 0x49, 0x49, 0x49, 0x41, 0x41, // E
0x7f, 0x7f, 0x41, 0x41, 0x63, 0x3e, 0x1c, // D
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00  // blank
};

//----------------------------------------------------------------
//  message_7_dispatch :
//    Dispatch function to draw a column of a character
//    representing by fonts7[] table.
//
//    Parameter:
//      row_start :
//        The upper-most ROW number to draw a character.
//----------------------------------------------------------------
void message_7_dispatch(const byte row_start) {
  byte        msg_data;
  byte        mask;
  byte        row;

  // Select a character to be drawn.
  if (message_column == 0) {
    // Load a new character if left-most pixel selected.
    if (message_table[message_index] == 255) {
      // Rewind index value to ZERO.
      message_index = 0;
    }
    // Get a character from message.
    message_char = message_table[message_index++];
  }
  // Prepare a column data to be drawn in msg_data.
  if (message_column < 7) {
    msg_data = fonts7[message_char][message_column];
  } else {
    // Set blank pixel as gap between characters.
    msg_data = 0;
  }
  // Draw a pixel pattern.
  // Set a pixel if set in character font.
  mask = 1 << (7 - 1);
  for (row = 0; row < 7; row++) {
    if (msg_data & mask) {
      pset(31, row + row_start);
    }
    mask >>= 1;
  }
  // Revert pixel column index to left-most.
  if (++message_column >= 8) {
    message_column = 0;
  }
}

//================================================================
//  ACTION control functions.
//================================================================
//----------------------------------------------------------------
//  request_action :
//    An ACTION requested by a periodical timer.
//    This function is typically invoked by a timer event
//    handler to set the action_requested flag.  The main
//    function executes an ACTION when the flag is set.
//----------------------------------------------------------------
void request_action(void) {
  flag.action_requested = TRUE;
}

//================================================================
//  TARGET object management.
//================================================================
//----------------------------------------------------------------
//  Constant declarations.
//
//    MAX_TARGET :
//      Maximum number of TARGETs on the screen.
//    TARGET_PER_STAGE :
//      Number of TARGETs appears on a stage.
//    TARGET_INTERVAL :
//      Interval time of TARGET constructions.
//    TARGET_TIMER_OVERFLOW :
//      Timer count causing OVERFLOW.
//    TARGET_TIMER_EXPLODE :
//      Timer count to finish explosion.
//----------------------------------------------------------------
#define         MAX_TARGET              (12)
const byte      TARGET_PER_STAGE        = 40;
const byte      TARGET_INTERVAL         = 13;
const byte      TARGET_TIMER_OVERFLOW   = 80;
const byte      TARGET_TIMER_EXPLODE    = 30;

//----------------------------------------------------------------
//  Type definition of the TARGET status enumeration.
//
//    TARGET_NONE :
//      TARGET is not on the screen.
//    TARGET_ALIVE :
//      TARGET is on the screend and moving.
//    TARGET_EXPLODE :
//      TARGET is now exploding.
//----------------------------------------------------------------
typedef enum {
  TARGET_NONE     = 0,
  TARGET_ALIVE    = 1,
  TARGET_EXPLODE  = 2
} TargetStatus;

//----------------------------------------------------------------
//  Property structure describing a TARGET.
//
//    status : TargetStatus
//      Status of the TARGET.
//    timer :
//      TARGET specific timer counter.
//    speed :
//      Speed of the TARGET move.
//    x, y :
//      Position of the TARGET.
//----------------------------------------------------------------
typedef struct {
  TargetStatus  status;
  byte          timer;
  byte          speed;
  byte          x;
  byte          y;
} Target;
Target        targets[MAX_TARGET];

#pragma DATA_SECTION SHORT MY_ZEROPAGE
//----------------------------------------------------------------
//  Global variables for TARGET management.
//
//    target_count :
//      Number of TARGETs had been constructed.
//    target_missed :
//      Number of TARGETs missed and gone.
//    target_on_stage :
//      Number of TARGETs ib the screen.
//    target_construct_timer :
//      Timer counter for TARGET construction.
//----------------------------------------------------------------
byte          target_count;
byte          target_missed;
byte          target_on_screen;
byte          target_construct_timer;

#pragma DATA_SECTION DEFAULT

//----------------------------------------------------------------
//  target_draw :
//    Draw a TARGET on the frame buffer.
//
//    Parameter:
//      target :
//        Pointer to a TARGET object.
//----------------------------------------------------------------
void target_draw(const Target *target) {
  byte  x = target->x;
  byte  y = target->y;

  // Set 3 pixels
  pset(x + 0, y);
  pset(x + 1, y);
  pset(x + 2, y);
}

//----------------------------------------------------------------
//  target_wipe :
//    Wipe a TARGET on the frame buffer.
//
//    Parameter:
//      target :
//        Pointer to a TARGET object.
//----------------------------------------------------------------
void target_wipe(const Target *target) {
  byte  x = target->x;
  byte  y = target->y;

  // Clear 3 pixels
  pclr(x + 0, y);
  pclr(x + 1, y);
  pclr(x + 2, y);
}

//----------------------------------------------------------------
//  target_destructAll :
//    Destruct all TARGET objects.
//----------------------------------------------------------------
void target_destructAll(void) {
  byte id;

  for (id = 0; id < MAX_TARGET; id++) {
    targets[id].status = TARGET_NONE;
  }
  target_on_screen = 0;
}

//----------------------------------------------------------------
//  target_destruct :
//    Destruct a specified TARGET objects.
//----------------------------------------------------------------
void target_destruct(Target *target) {
  if (target->status != TARGET_NONE) {
    target->status = TARGET_NONE;
    target_on_screen--;
  }
}

//----------------------------------------------------------------
//  target_construct :
//    Construct a TARGET object if possible.
//
//    Returns:
//      TRUE if a TARGET is successfully constructed,
//      or FALSE if failed to construction.
//----------------------------------------------------------------
bool target_construct(void) {
  byte        id;
  Target      *target;

  for (id = 0; id < MAX_TARGET; id++) {
    // Find an empty slot.
    if (targets[id].status == TARGET_NONE) {
      // Initialize a TARGET object.
      target = &targets[id];
      target->status = TARGET_ALIVE;
      target->x = 29;
      target->y = (n_rand & 7) + 1;
      target->speed = ((n_rand >> 3) & 15) + 10;
      target->timer = 0;
      // Increment count of TARGET constructed.
      target_count++;
      target_on_screen++;
      // Return TRUE on success.
      return TRUE;
    }
  }
  // Return FALSE on fail.
  return FALSE;
}

//----------------------------------------------------------------
//  explode_sono :
//    An object to make an explosion SONO.
//----------------------------------------------------------------
const Sono explode_sono = {
  10,   53000
};

//----------------------------------------------------------------
//  target_explode :
//    Start an explosion sequence of a TARGET.
//----------------------------------------------------------------
void target_explode(Target *target) {
  // Initialize timer counter.
  target->timer = 0;
  // Update the state.
  target->status = TARGET_EXPLODE;
  // Start an explosion SONO.
  (void)sono_disable();
  (void)sono_queue_in(&explode_sono);
}

//----------------------------------------------------------------
//  target_action :
//    Typical ACTION of a TARGET object.
//
//    Parameter:
//      target :
//        Pointer to a TARGET object.
//----------------------------------------------------------------
void target_action(Target *target) {
  switch (target->status) {
    case TARGET_ALIVE:
      // TARGET is moving on the screen.
      target->timer += target->speed;
      if (target->timer > TARGET_TIMER_OVERFLOW) {
        // Individual timer cause OVERFLOW.
        target->timer -= TARGET_TIMER_OVERFLOW;
        // wipe TARGET to move
        target_wipe(target);
        if (target->x > 0) { // Check the position of TARGET.
          // Move left the TARGET if still on the screen.
          (target->x)--;
          // Draw a TARGET at new position.
          target_draw(target);
        } else {
          // The TARGET is gone.
          target_missed++;    // Increment MISSED counter.
          // Destruct the TARGET.
          target_destruct(target);
        }
      } else {
        // Redraw the TARGET to refresh.
        target_draw(target);
      }
      break;
    case TARGET_EXPLODE:
      // TARGET is exploding.
      if (target->timer & 1) {
        // Draw TARGET if the timer counter is ODD
        target_draw(target);
      } else {
        // Wipe TARGET if the timer counter is EVEN
        target_wipe(target);
      }
      // Check if the explosion time finished.
      if (++(target->timer) > TARGET_TIMER_EXPLODE) {
        // Wipe TARGET certainly
        target_wipe(target);
        // Destruct the TARGET object.
        target_destruct(target);
      }
    case TARGET_NONE:
    default:
      // Nothing to do for TARGET out of screen.
      break;
  }
}

//================================================================
//  CANON object management.
//================================================================
//----------------------------------------------------------------
//  Constant definition for CANON object.
//
//  y_canon :
//    Y-position of the CANON object.
//  POT_HYSTERISIS :
//    Hysterisis value for conversion from pot_value to
//    x_canon.  The x_canon value will be stable in spite
//    of the noise on ADC.
//----------------------------------------------------------------
const byte    y_canon           = 14;
const byte    POT_HYSTERISIS    = 4;

#pragma DATA_SECTION SHORT MY_ZEROPAGE
//----------------------------------------------------------------
//  Global variables for CANON.
//
//    x_canon :
//      X-Position of CANON object. (0 <= x_canon <= 29)
//----------------------------------------------------------------
byte        x_canon;

#pragma DATA_SECTION DEFAULT


//----------------------------------------------------------------
//  draw_canon :
//    Draw a CANON object on the frame buffer.
//----------------------------------------------------------------
void draw_canon(void) {
  // Set 4 pixels.
  pset(x_canon + 0, y_canon + 1);
  pset(x_canon + 1, y_canon + 1);
  pset(x_canon + 1, y_canon + 0);
  pset(x_canon + 2, y_canon + 1);
}

//----------------------------------------------------------------
//  wipe_canon :
//    Wipe a CANON object on the frame buffer.
//----------------------------------------------------------------
void wipe_canon(void) {
  // Clear 4 pixels.
  pclr(x_canon + 0, y_canon + 1);
  pclr(x_canon + 1, y_canon + 1);
  pclr(x_canon + 1, y_canon + 0);
  pclr(x_canon + 2, y_canon + 1);
}

//----------------------------------------------------------------
//  canon_action :
//    Typical ACTION of CANON object.
//
//    Adjustment constant calculation :
//      x_canon is adjusted to 14.5 when pot_value is 128
//      and pot_value is 4 times faster than x_canon.
//      In addition, the direction of x_canon is opposite to
//      the pot_value's one due to hardware mis-implement.
//      ouch!!!
//
//      -(x_canon - 14.5) * 4 = (pot_value - 128)
//      pot_value = 186 - (x_canon * 4)
//----------------------------------------------------------------
void canon_action(void) {
  byte      exp_pot;      // POT value expected from x_canon.
  byte      pot_value;    // Measured POT value.
  byte      err_code;     // Error code returned by ADC bean.

  // Measure and Get position
  err_code = Pot_Measure(TRUE);
  err_code = Pot_GetValue8(&pot_value);
  // Wipe CANON object
  wipe_canon();
  // Calculate expected pot_value from x_canon
  exp_pot = 186 - x_canon * 4;
  // Adjust position
  // Move CANON if pot_value is too larger or smaller than
  // expected value.  Hysterisis constant
  if (pot_value >= exp_pot + POT_HYSTERISIS) {
    if (x_canon > 0) {
      x_canon--;
    }
  } else if (pot_value <= exp_pot - POT_HYSTERISIS) {
    if (x_canon < 29) {
      x_canon++;
    }
  }
  // Draw CAONON object.
  draw_canon();
}

//================================================================
//  BULLET object management.
//================================================================
#pragma DATA_SECTION SHORT MY_ZEROPAGE
//----------------------------------------------------------------
//  Global variables for BULLET object.
//
//    x_bullet, y_bullet :
//      Position of BULLET object. y_bullet==0 means BULLET
//      is not on the screen.
//----------------------------------------------------------------
byte        x_bullet;
byte        y_bullet;

#pragma DATA_SECTION DEFAULT


//----------------------------------------------------------------
//  Constant table declaration.
//
//  bullet_sono[] :
//    List of SONO object describing the Music Effects of
//    the BULLET object.
//----------------------------------------------------------------
const Sono bullet_sono[16] = {
  2,    4000000 /  523, // DO
  2,    4000000 /  523, // DO
  2,    4000000 /  554, // DO#
  2,    4000000 /  587, // RE

  2,    4000000 /  622, // RE#
  2,    4000000 /  660, // MI
  2,    4000000 /  699, // FA
  2,    4000000 /  740, // FA#

  2,    4000000 /  784, // SO
  2,    4000000 /  831, // SO#
  2,    4000000 /  880, // RA
  2,    4000000 /  932, // RA#

  2,    4000000 /  988, // SI
  2,    4000000 / 1047, // DO
  2,    4000000 / 1109, // DO#
  2,    4000000 / 1175  // RE
};

//----------------------------------------------------------------
//  draw_bullet :
//    Draw a BULLET object on the frame buffer.
//----------------------------------------------------------------
void draw_bullet(void) {
  // Set 2 pixels
  pset(x_bullet + 0, y_bullet - 1);
  pset(x_bullet + 0, y_bullet - 0);
}

//----------------------------------------------------------------
//  wipe_bullet :
//    Wipe a BULLET object on the frame buffer.
//----------------------------------------------------------------
void wipe_bullet(void) {
  // Clear 2 pixels
  pclr(x_bullet + 0, y_bullet - 1);
  pclr(x_bullet + 0, y_bullet - 0);
}

//----------------------------------------------------------------
//  bullet_trigger :
//    Check if a SHOOT event occurs.
//
//    Returns:
//      TRUE if a SHOOT event occurs, and FALSE otherwise.
//----------------------------------------------------------------
byte bullet_trigger(void) {
  // Implement just check the Shoot button status.
  return !Shoot_GetVal();
}

//----------------------------------------------------------------
//  bullet_action :
//    Typical ACTION of the BULLET object including
//    construction.  Only one BULLET can be put on the
//    screen.
//----------------------------------------------------------------
void bullet_action(void) {
  // Construct bullet if button pushed.
  if (y_bullet == 0) {
    if (bullet_trigger()) {
      x_bullet = x_canon + 1;
      y_bullet = y_canon;
    }
  }
  // Return immediately if no BULLET exists
  if (y_bullet == 0) {
    return;
  }
  // Wipe to move the BULLET.
  wipe_bullet();
  // Go forward.
  y_bullet--;
  // Check if the BULLET reached to ceil
  if (y_bullet == 0) {
    // Set HIT flag.
    flag.hit = TRUE;
  } else {
    // Draw a BULLET object.
    draw_bullet();
    // Queue a Sono according to y_bullet.
    (void)sono_queue_in(&bullet_sono[y_bullet]);
  }
}

//----------------------------------------------------------------
//  bullet_collision :
//    Do a collision process if the BULLET collide with
//    the specified TARGET.
//
//    Parameter:
//      target :
//        Pointer to a TARGET to be checked.
//----------------------------------------------------------------
void bullet_collision(Target *target) {
  // Check if the BULLET collide with the TARGET
  if (
       (y_bullet > 0)
    && (target->status == TARGET_ALIVE)
    && (x_bullet >= (target->x) + 0)
    && (x_bullet <= (target->x) + 2)
    && (y_bullet == (target->y))
  ) {
    // Wipe the BULLET.
    wipe_bullet();
    // Destruct the BULLET.
    y_bullet = 0;
    // Initialize the TARGET for explosion.
    target_explode(target);
  }
}

//================================================================
//  Game algorithm state machine.
//================================================================
//----------------------------------------------------------------
//  shoot_to_start :
//    An opening message displayed in PROLOGUE.
//    This message uses 11-row font.
//----------------------------------------------------------------
const byte shoot_to_start[] = {
  17,     // 'S'
  13,     // 'H'
  0,      // 'O'
  0,      // 'O'
  18,     // 'T'
  19,     // ' '
  18,     // 'T'
  0,      // 'O'
  19,     // ' '
  17,     // 'S'
  18,     // 'T'
  10,     // 'A'
  16,     // 'R'
  18,     // 'T'
  19,     // ' '
  19,     // ' '
  255     // STOP
};

//----------------------------------------------------------------
//  prologue_action :
//    State description of the PROLOGUE state.
//----------------------------------------------------------------
void prologue_action(void) {
  // Prototype declaration.
  void        game_init(void);

  // Play MUSIC.
  music_dispatch();
  // Move CANON object.
  canon_action();
  // Execute a BULLET related ACTION.
  bullet_action();
  // Shift the screen to LEFT.
  fb_shiftLeft(1, 11);
  // Transition to GAME if a bullet reached to ceil and
  // a complete character of the message appeared.
  if (flag.hit && message_column == 0) {
    game_init();
  } else {
    // Dispatch the message at ROW#1.
    message_11_dispatch(1);
  }
}

//----------------------------------------------------------------
//  prologue_init :
//    Initialization part of the PROLOGUE state.
//----------------------------------------------------------------
void prologue_init(void) {
  // Clear the message area.
  fb_clear(0, 14);
  // Initialize MESSAGE dispatcher.
  message_init(shoot_to_start);
  // Initialize MUSIC dispatcher.
  music_init(dash);
  // Clear HIT flag to detect bullet event.
  flag.hit = FALSE;
  // Transition to the PROLOGUE state.
  action = prologue_action;
}

//----------------------------------------------------------------
//  game_action :
//    State description of the GAME state.
//----------------------------------------------------------------
void game_action(void) {
  byte        id;
  void        epilogue_init(void);

  // Do all TARGET's action.
  for (id = 0; id < MAX_TARGET; id++) {
    target_action(&targets[id]);
  }
  // Move CANON object.
  canon_action();
  // Execute a BULLET related ACTION.
  bullet_action();
  // collision detection.
  for (id = 0; id < MAX_TARGET; id++) {
    bullet_collision(&targets[id]);
  }
  // Construct a TARGET if requested.
  if (target_count < TARGET_PER_STAGE) {
    if (++target_construct_timer > TARGET_INTERVAL) {
      target_construct_timer = 0;
      // Construct a TARGET if possible.
      (void)target_construct();
    }
  }
  // Check if all TARGETs are constructed and disappeared.
  if (target_count >= TARGET_PER_STAGE) {
    if (target_on_screen == 0) {
      epilogue_init();
    }
  }
}

//----------------------------------------------------------------
//  game_init :
//    Initialization part of the GAME state.
//----------------------------------------------------------------
void game_init(void) {
  // Clear the message area.
  fb_clear(0, 14);
  // Destruct all TARGET objects.
  target_destructAll();
  // Reset TARGET object counter.
  target_count = 0;
  target_missed = 0;
  // Set to Music Effect mode.
  flag.music_played = FALSE;
  // Transition to the GAME state.
  action = game_action;
}

//----------------------------------------------------------------
//  message_missed[] :
//    A message displayed when a stage is over.
//    The NUMBER part is replaced by a program.
//----------------------------------------------------------------
byte message_missed[] = {
  0,      // '0'
  0,      // '0'
  0,      // '0'
  15,     // ' '
  10,     // 'M'
  11,     // 'I'
  12,     // 'S'
  12,     // 'S'
  13,     // 'E'
  14,     // 'D'
  15,     // ' '
  15,     // ' '
  255     // STOP
};

//----------------------------------------------------------------
//  epilogue_action :
//    State description of the EPILOGUE state.
//----------------------------------------------------------------
void epilogue_action(void) {
  // Play MUSIC.
  music_dispatch();
  // Move CANON object.
  canon_action();
  // Execute a BULLET related ACTION.
  bullet_action();
  // Shift the screen to LEFT.
  fb_shiftLeft(3, 7);
  // Transition to PROLOGUE if a bullet reached to ceil and
  // a complete message appeared.
  if (flag.hit && message_index == 1) {
    prologue_init();
  } else {
    // Dispatch the message at ROW#3.
    message_7_dispatch(3);
  }
}

//----------------------------------------------------------------
//  epilogue_init :
//    Initialization part of the EPILOGUE state.
//----------------------------------------------------------------
void epilogue_init(void) {
  // Clear the message area.
  fb_clear(0, 14);
  // Create a EPILOGUE message.
  // Set the MISSED count to the message.
  message_missed[2] = target_missed % 10;
  if (target_missed < 10) {
    message_missed[1] = 15;
  } else {
    message_missed[1] = (target_missed / 10) % 10;
  }
  if (target_missed < 100) {
    message_missed[0] = 15;
  } else {
    message_missed[0] = (target_missed / 100);
  }
  // Initialize MESSAGE dispatcher.
  message_init(message_missed);
  // Initialize MUSIC dispatcher.
  music_init(sonate);
  // Clear HIT flag to detect bullet event.
  flag.hit = FALSE;
  // Transition to the EPILOGUE state.
  action = epilogue_action;
}

void main(void)
{
  /* Write your local variable definition here */

  /*** Processor Expert internal initialization. DON'T REMOVE THIS CODE!!! ***/
  PE_low_level_init();
  /*** End of Processor Expert internal initialization.                    ***/

  /* Write your code here */
  /* For example: for(;;) { } */
  prologue_init();
  for (;;) {
    // Main loop to invoke STATE function
    // if requested by the periodical timer event.
    if (flag.action_requested) {
      flag.action_requested = FALSE;
      (*action)();
    }
    // Random number genertor is implemented as a simple counter.
    n_rand++;
  }

  /*** Don't write any code pass this line, or it will be deleted during code generation. ***/
  /*** Processor Expert end of main routine. DON'T MODIFY THIS CODE!!! ***/
  for(;;){}
  /*** Processor Expert end of main routine. DON'T WRITE CODE BELOW!!! ***/
} /*** End of main routine. DO NOT MODIFY THIS TEXT!!! ***/

/* END LedMat */
/*
** ###################################################################
**
**     This file was created by UNIS Processor Expert 2.99 [03.85]
**     for the Freescale HCS08 series of microcontrollers.
**
** ###################################################################
*/

/** ###################################################################
**     Filename  : Events.C
**     Project   : LedMat
**     Processor : MC9S08QG8CPB
**     Beantype  : Events
**     Version   : Driver 01.02
**     Compiler  : CodeWarrior HCS08 C Compiler
**     Date/Time : 2007/04/28, 18:01
**     Abstract  :
**         This is user's event module.
**         Put your event handler code here.
**     Settings  :
**     Contents  :
**         SM1_OnRxChar - void SM1_OnRxChar(void);
**         SM1_OnTxChar - void SM1_OnTxChar(void);
**         SM1_OnError  - void SM1_OnError(void);
**
**     (c) Copyright UNIS, spol. s r.o. 1997-2006
**     UNIS, spol. s r.o.
**     Jundrovska 33
**     624 00 Brno
**     Czech Republic
**     http      : www.processorexpert.com
**     mail      : info@processorexpert.com
** ###################################################################*/
/* MODULE Events */


#include "Cpu.h"
#include "Events.h"

/*
** ===================================================================
**     Event       :  TI1_OnInterrupt (module Events)
**
**     From bean   :  TI1 [TimerInt]
**     Description :
**         When a timer interrupt occurs this event is called (only
**         when the bean is enabled - <"Enable"> and the events are
**         enabled - <"EnableEvent">). This event is enabled only if
**         a interrupt service/event is enabled.
**     Parameters  : None
**     Returns     : Nothing
** ===================================================================
*/
void TI1_OnInterrupt(void)
{
  /* Write your code here ... */
  extern void sono_dispatch(void);
  extern void led_display(byte row);
  extern void request_action(void);

  // Static variable for software timer.
  static byte   sono_timer = 0;
  static byte   spi_timer = 0;
  static byte   action_timer = 0;

  // SONO manager invoked every 23msec
  if (++sono_timer >= 26) {
    sono_timer = 0;
    sono_dispatch();
  }
  // SPI commnication scheduling.
  led_display(spi_timer);
  if (++spi_timer >= 16) {
    spi_timer = 0;
  }
  // Action requested every 50msec
  if (++action_timer >= 56) {
    action_timer = 0;
    request_action();
  }
}

/*
** ===================================================================
**     Event       :  SM1_OnRxChar (module Events)
**
**     From bean   :  SM1 [SynchroMaster]
**     Description :
**         This event is called after a correct character is
**         received.
**         The event is available only when the <Interrupt
**         service/event> property is enabled.
**     Parameters  : None
**     Returns     : Nothing
** ===================================================================
*/
void SM1_OnRxChar(void)
{
  /* Write your code here ... */
  extern void spi_OnRxChar(void);

  // Invoke actual event handler in MAIN.
  spi_OnRxChar();
}

/*
** ===================================================================
**     Event       :  SM1_OnError (module Events)
**
**     From bean   :  SM1 [SynchroMaster]
**     Description :
**         This event is called when a channel error (not the error
**         returned by a given method) occurs. The errors can be
**         read using <GetError> method.
**         The event is available only when the <Interrupt
**         service/event> property is enabled.
**     Parameters  : None
**     Returns     : Nothing
** ===================================================================
*/
void SM1_OnError(void)
{
  /* Write your code here ... */
  extern void spi_OnError(void);

  // Invoke actual event handler in MAIN.
  spi_OnError();
}

/* END Events */

/*
** ###################################################################
**
**     This file was created by UNIS Processor Expert 2.99 [03.85]
**     for the Freescale HCS08 series of microcontrollers.
**
** ###################################################################
*/
